Use Cases, a Small Cluster Walkthrough and Scaling Up

Common HPC workloads

Table 20. HPC workload examples

Workload	Why the fabric matters
Computational fluid dynamics	Domain decomposition exchanges boundary state every iteration
Weather/climate modelling	Large distributed grids require frequent neighbor/global communication
Molecular dynamics	Many particles/forces exchanged across domain boundaries
Genomics	Large data movement plus distributed search/assembly stages
Seismic processing	Bandwidth-heavy distributed transforms and reductions
Computational chemistry	Tightly coupled numerical kernels and collective operations
EDA	Large distributed simulation/verification workloads
Physics simulations	Barrier-heavy multi-rank computation and reductions

Common AI workloads

Table 21. AI workload examples

Workload	Network sensitivity
Large-language-model training	Very high collective traffic; model/data/tensor parallelism can make fabric critical
Multimodal training	Large tensors and synchronization across GPU groups
Recommendation training	Can combine huge embeddings, all-to-all patterns and storage traffic
Distributed inference	Sensitivity varies; tensor/expert parallel inference can be network-intensive
AI factories	Many simultaneous jobs require performance isolation, telemetry and capacity planning

A four-node walkthrough

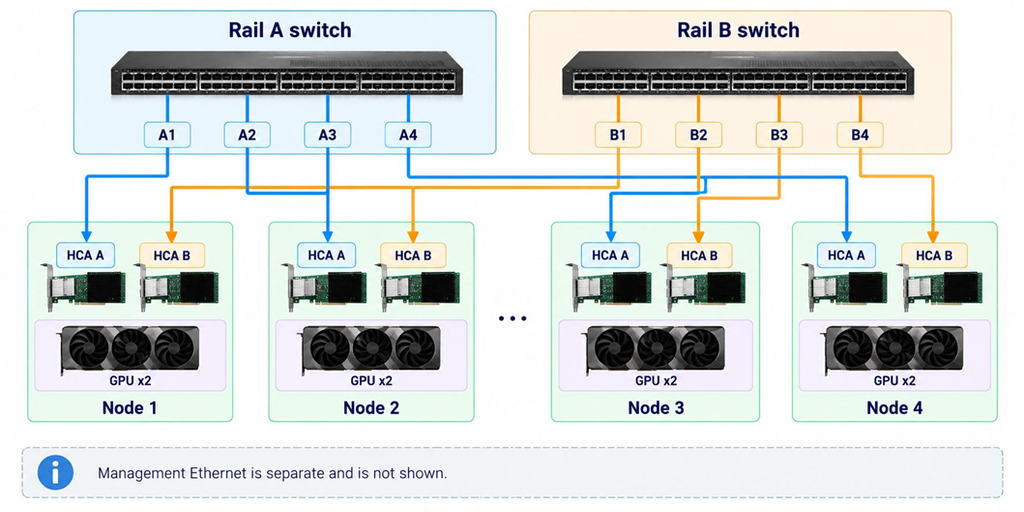

Figure 25. Four-node dual-rail training/HPC lab

1. The server boots and enumerates the HCA on PCIe.
2. The Linux HCA/RDMA driver exposes verbs devices.
3. Physical InfiniBand links train and enter an operational state.
4. The active Subnet Manager discovers nodes and switches, assigns/validates identifiers and programs routes.
5. MPI, UCX or NCCL starts and discovers available transports/devices.
6. The runtime allocates and registers communication buffers.
7. Queue Pairs and related resources are created; endpoints exchange connection/memory metadata as required.
8. Work Requests are posted. The HCA executes DMA and sends InfiniBand packets through the programmed fabric.
9. Remote HCA(s) place or return data according to the operation.
10. Completion Queue entries tell software which work has completed.
11. The application proceeds to the next compute/communication phase.

From four nodes to thousands of GPUs

Scaling the node count does not change the basic RDMA objects, but it changes everything around them: switch radix, cable plant, path count, failure frequency, telemetry volume, routing computation, job placement and the cost of asymmetry. NVIDIA’s current Quantum-X800 Q3400 switch exposes 144 ports at 800 Gb/s and is designed for very large two-level fabrics, illustrating how high radix is used to keep tier count low [R12].

• Topology symmetry becomes an operational requirement, not an aesthetic preference.
• A single mis-cabled link can create asymmetric path length or reduced capacity.
• Firmware/driver versions must be qualified as a cluster combination.
• Schedulers increasingly need topology awareness so large jobs are placed on nearby healthy resources.
• Telemetry must be correlated with job IDs and time windows, not viewed only as device health.
• Change management matters because a “small” routing or firmware change can affect thousands of accelerators.

Key Takeaways

• HPC and AI use different algorithms, but both benefit when communication is fast and predictable.
• The four-node workflow already contains the same core objects found at large scale.
• At massive scale, operations, topology and change control become as important as link speed.

Hands-on learning roadmap

Table 24. Staged learning path

Stage	Focus	Practical outcome
1 – Concepts	Fabric, RDMA, HCA, QP, MR, LID	Explain an end-to-end data path
2 – Linux RDMA stack	Drivers, rdma-core, verbs devices	Identify hardware and ports
3 – Verbs/perftest	Send/Read/Write latency and bandwidth	Measure a controlled path
4 – MPI/UCX	Ranks, transport selection, multi-rail	Run a small distributed job
5 – NCCL/GPU	Collectives, topology, GPUDirect	Measure multi-GPU communication
6 – Fabric topology	SM, routes, Clos/fat tree, rails	Read and validate a topology
7 – Troubleshooting	Counters, errors, congestion, locality	Diagnose a degraded link/job
8 – Large-scale design	Capacity, resiliency, operations	Produce an architecture decision record

Without RDMA-capable hardware you can still learn the software concepts, inspect APIs and understand MPI/NCCL collectives, but you cannot faithfully reproduce HCA DMA behavior, link-level credits, real verbs latency or InfiniBand switch routing. A two-node lab with supported HCAs and one small switch is enough to make the abstractions tangible.
