Kubernetes and Cloud-Native Integration

Kubernetes adds a scheduling and network-abstraction layer above the physical fabric. The cluster CNI handles ordinary pod connectivity, but high-performance AI pods may also need direct or virtualized access to RDMA-capable NIC resources. Those are separate concerns and should be designed explicitly.

Key building blocks

• CNI: provides baseline pod networking and service connectivity.
• SR-IOV: exposes virtual functions from a physical NIC to workloads with low overhead.
• RDMA device plugins/operators: advertise RDMA-capable resources to Kubernetes scheduling.
• NVIDIA Network Operator: automates components such as drivers, SR-IOV, RDMA shared devices, NIC configuration, and Spectrum-X profiles depending on release.
• GPUDirect RDMA: enables direct GPU-memory data movement through supported NICs.
• BlueField/DPU: can offload networking, storage, or security functions from the host.
• Multus/multiple networks: commonly used when pods need both normal service networking and a separate high-performance AI network.

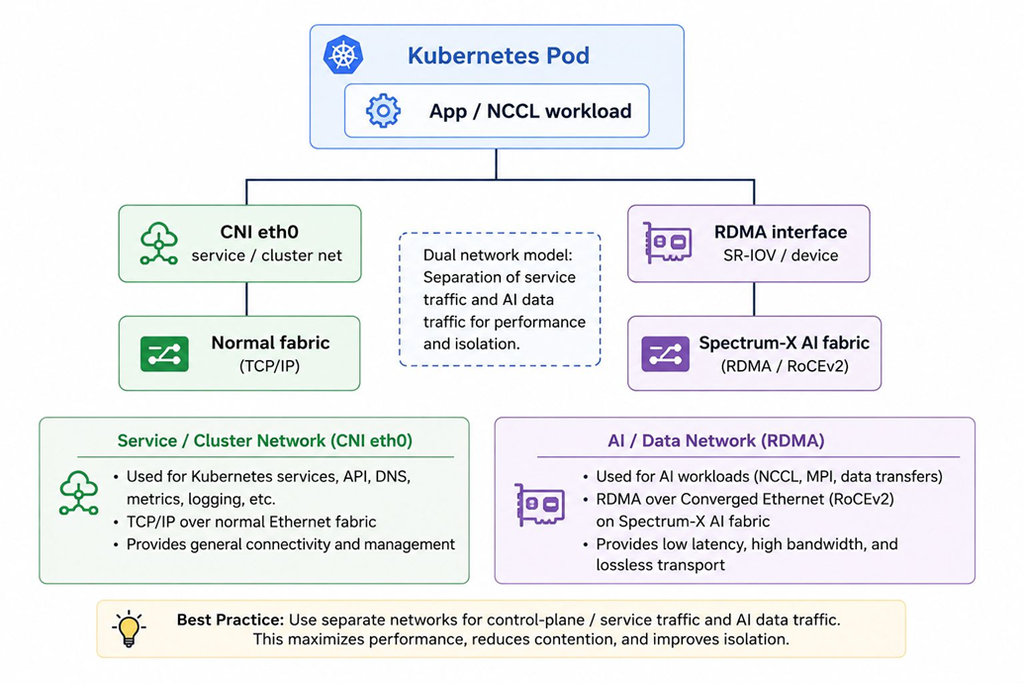

Figure 28. Kubernetes service network and AI network

Design rule

Do not assume the Kubernetes pod network should carry GPU collective traffic. Many high-performance designs deliberately separate service traffic from the AI compute fabric while still presenting both interfaces to the same pod.

Source note: See references [3], [31].

Multi-Network AI Data Centre Architecture

Large AI installations often separate network roles because they have very different traffic patterns and failure implications. Physical separation is the clearest model, but logical separation with VRFs/VLANs on a shared physical fabric can be appropriate where performance and fault-isolation requirements permit.

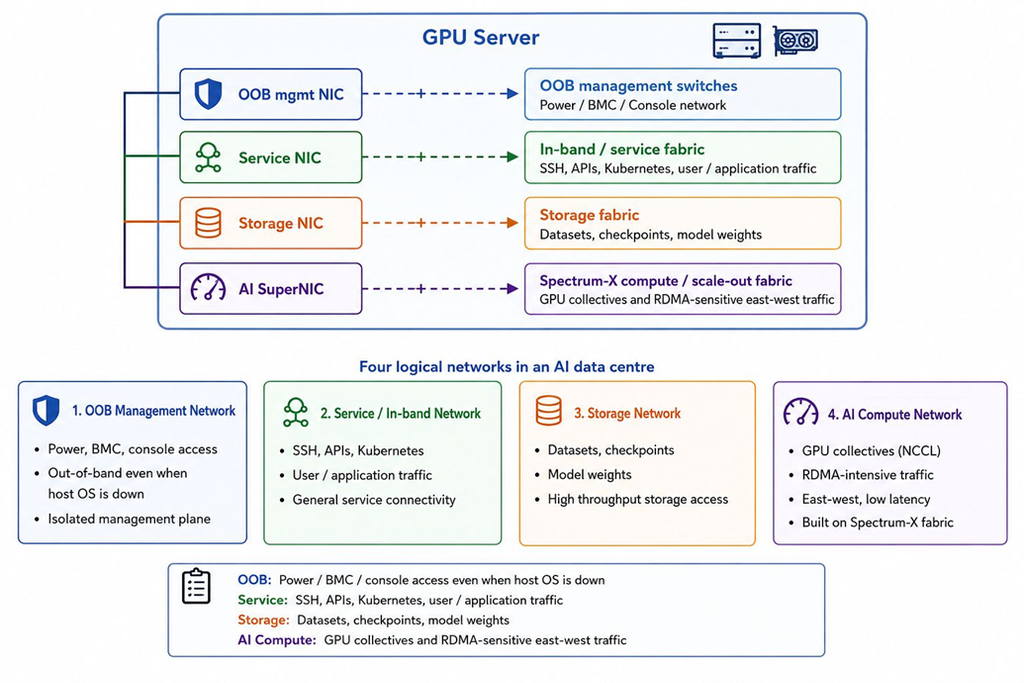

Figure 29. Four logical networks in an AI data centre

Physical vs logical separation

Approach	Advantages	Trade-offs
Separate physical fabrics	Strongest fault/performance isolation; easier QoS reasoning	More switches, NICs, optics, cabling, power
Shared fabric + VRFs/VLANs	Lower infrastructure count; flexible capacity	Shared congestion/failure domain; QoS becomes critical
Hybrid	Separate AI compute, converge service/storage where sensible	More design choices and operational policy to maintain

For the largest training clusters, the AI compute fabric is commonly treated as special-purpose infrastructure. OOB management should be independent enough to remain reachable when the production network is misconfigured.

Security Considerations

Spectrum is a networking platform, not a replacement for firewalls, identity systems, or security operations. Its job is to provide secure management, segmentation, policy enforcement where appropriate, and trustworthy infrastructure behaviour.

Management plane

• Use centralized AAA where practical and restrict local accounts.
• Use role-based access and least privilege for operators and automation accounts.
• Prefer SSH and secure APIs; disable unused management services.
• Separate OOB management into its own controlled network.
• Protect secrets in a vault rather than Git repositories.
• Log configuration and authentication events centrally.

Data and control planes

• Use VRFs and overlays to separate tenants or functional domains where required.
• Apply ACLs at deliberate trust boundaries instead of scattering policy everywhere.
• Protect routing sessions and control-plane resources from untrusted traffic.
• Validate route-policy and prefix filters to prevent accidental route leaks.
• Use DPU-based isolation/offload when it solves a specific infrastructure-security requirement; do not treat “DPU present” as automatically secure.

Software supply chain

Switch NOS images, NIC firmware, DPU software, containers, automation modules, and CI runners are part of the infrastructure supply chain. Pin validated versions, verify image integrity, restrict who can publish artifacts, keep an inventory, and test updates before production.

Source note: See references [32].

Upgrade and Lifecycle Management

The biggest beginner mistake in high-performance networking is to treat every component independently. A Spectrum-X fabric has interdependent switch NOS, switch firmware, NIC/SuperNIC firmware, DOCA host software, Network Operator, NCCL/HPC-X, and reference-architecture profiles. Upgrade them as a tested solution stack.

Recommended lifecycle pattern

1. Inventory hardware, NOS, firmware, optics, host drivers, and reference-architecture versions.
2. Check the current support matrix and validated Spectrum-X solution stack.
3. Reproduce the production topology and configuration in DSX Air and/or a physical lab.
4. Run configuration validation and representative traffic/performance tests.
5. Upgrade one failure domain or canary group.
6. Observe routing, queue, RoCE, optics, and application metrics.
7. Continue in waves with a tested rollback point.
8. Update source of truth and configuration baselines after success.

Cumulus support lifecycle

NVIDIA publishes release and end-of-life information for Cumulus Linux. As of September 2026, the support policy lists Cumulus 5.18 with an August 2027 end-of-life date and recommends current 5.x releases on Spectrum hardware. That does not override Spectrum-X validation: the AI reference architecture can intentionally pin an earlier qualified Cumulus release.

Optics and firmware

Optics compatibility is both a physical and support consideration. Switch firmware/NOS updates can also carry platform requirements. Preserve a known-good bundle rather than upgrading only the component that happens to have a newer version number.

Source note: See references [11], [16], [33].

Common Mistakes Beginners Make

Mistake	Why it matters
Treat AI traffic like web traffic	Collectives synchronize many endpoints; one hot path can idle many GPUs.
Assume more link speed solves congestion	Congestion is about traffic distribution, offered load, queues, and topology—not only raw bit rate.
Enable PFC everywhere	Can propagate pauses, create head-of-line blocking, and hide poor congestion design.
Ignore oversubscription	A fabric may have fast ports but insufficient bisection bandwidth for all-to-all traffic.
Undersize spines	Leaf capacity is useless when uplinks become the bottleneck.
Skip telemetry	Performance problems become guesswork; small imbalances can persist unnoticed.
Build huge L2 domains	Expands broadcast/failure scope and sacrifices ECMP/routing simplicity without clear benefit.
Configure by hand	Large fabrics accumulate drift and inconsistent QoS/routing state.
Plan only normal state	A single failure can push surviving links beyond congestion thresholds.
Ignore optics and cabling	A logically correct design can be impossible to cable, cool, or service.
Mix management and compute carelessly	A compute-fabric incident can remove the very access needed to troubleshoot it.
Ignore NIC/GPU/PCIe topology	The bottleneck may be local to the server even if the network is healthy.
Trust ECMP alone for synchronized elephant flows	Static hashing can create persistent path imbalance in AI traffic.

Best beginner habit: Whenever a design choice is justified by “that is how networks are usually built,” ask whether the workload is ordinary enterprise traffic or synchronized distributed compute. AI often changes the answer.

Troubleshooting Scenarios

Scenario	Likely causes	Checks	Possible remedies
One host has poor throughput	Bad optic/FEC, NIC config, PCIe/NUMA mismatch, host driver issue	Compare peer host; link/FEC; NIC firmware; GPU/NIC locality	Replace optic/cable; align firmware/profile; fix CPU/GPU/NIC placement
One rack is slower	Leaf uplink error, path imbalance, oversubscription, bad spine link	Compare rack queue/ECMP counters; uplinks; routing; optics	Repair link; rebalance paths; add capacity; correct config
ECN marks spike	Real congestion or thresholds too low	Queue occupancy, offered load, affected classes, time correlation	Reduce offered load; rebalance paths; validate thresholds/profile
PFC pauses increase	Downstream congestion, buffer pressure, wrong mapping	Per-priority pause TX/RX, queue occupancy, ECN, cable settings	Fix congestion root cause; validate PFC/ECN/buffers; avoid broad PFC
Packet drops	Queue overflow, physical errors, policers, MTU mismatch	Drop reason/WJH, FEC, queues, MTU, ACL/policer	Correct MTU/QoS; repair physical path; add capacity
One spine overloaded	ECMP imbalance or link failure on alternatives	ECMP next hops, adaptive routing state, queue histograms	Restore failed paths; validate hashing/AR; rebalance topology
GPU utilization low	Network, storage, CPU pipeline, or application sync	NCCL tests, NIC rate, storage, GPU wait profile	Isolate layer; tune network or application pipeline
NCCL inconsistent	Path changes, congestion, rail mapping, mixed firmware	Per-iteration correlation with NetQ/queues; topology and versions	Pin validated stack; fix rail mapping; repair congestion
BGP flaps	Physical link, MTU, CPU load, config drift, timer mismatch	BFD/link logs, interface errors, BGP reason, automation history	Repair link/config; normalize timers; stage automation
Optical errors rise	Dirty connector, failing optic/fiber, thermal issue	Rx/Tx power, BER/FEC, temperature, lane counters	Clean/replace optic or fiber; improve cooling
Automation inconsistency	Partial rollout, template branching, secret/API failure	CI logs, running vs intended config, device cohort	Rollback; fix pipeline; add transaction/staging checks

Troubleshooting sequence

1. Define the blast radius: host, rack, pod, fabric, or application-wide.
2. Compare a good path with a bad path instead of looking at counters in isolation.
3. Check physical health before tuning congestion control.
4. Check routing/path diversity and recent topology changes.
5. Check queue, ECN, PFC, and adaptive-routing signals.
6. Validate host NIC/SuperNIC firmware and the approved Spectrum-X profile.
7. Correlate network symptoms with NCCL/application timing.

Change one thing at a time and preserve before/after telemetry.
