A Beginner’s Guide to NVIDIA Spectrum and Spectrum-X Networking
Spectrum vs ordinary switching, fabric thinking, history, and AI motivation
- Part 1 — What NVIDIA Spectrum Is ← You are here
- Part 2 — Why NVIDIA Spectrum
- Part 3 — AI Factory Fabric Architecture
- Part 4 — RDMA and ROCE
- Part 5 — NOS, IaC, and Operations
- Part 6 — HA, Physical Layer Design, and Scaling
- Part 7 — Multi-Cloud, Security, and Lifecycle Management
- Part 8 — Design Scenarios, Glosary, and References
The one-sentence version
Spectrum is the Ethernet switching foundation; Spectrum-X is an end-to-end AI Ethernet system assembled from switches, host adapters, software, and validated tuning. The distinction matters because buying a fast switch alone does not automatically produce an AI-optimized network.
Overview
What NVIDIA Spectrum networking is
NVIDIA Spectrum is a family of standards-based Ethernet switch silicon and switch systems designed for high-performance data-centre fabrics. It spans conventional cloud and storage switching as well as AI-oriented Ethernet deployments. Spectrum-X is the AI-optimized platform built around tightly coordinated Spectrum Ethernet switching, NVIDIA SuperNICs, RoCE, telemetry, congestion-control mechanisms, validated software, and operational tooling.
Current-generation note
As of September 2026, NVIDIA positions Spectrum-6 as its newest Spectrum switching generation for Vera Rubin-era AI factories. Spectrum-4/SN5000 remains important in current Spectrum-X validated deployments, while Spectrum-3 and earlier generations continue to appear in conventional data-centre environments.

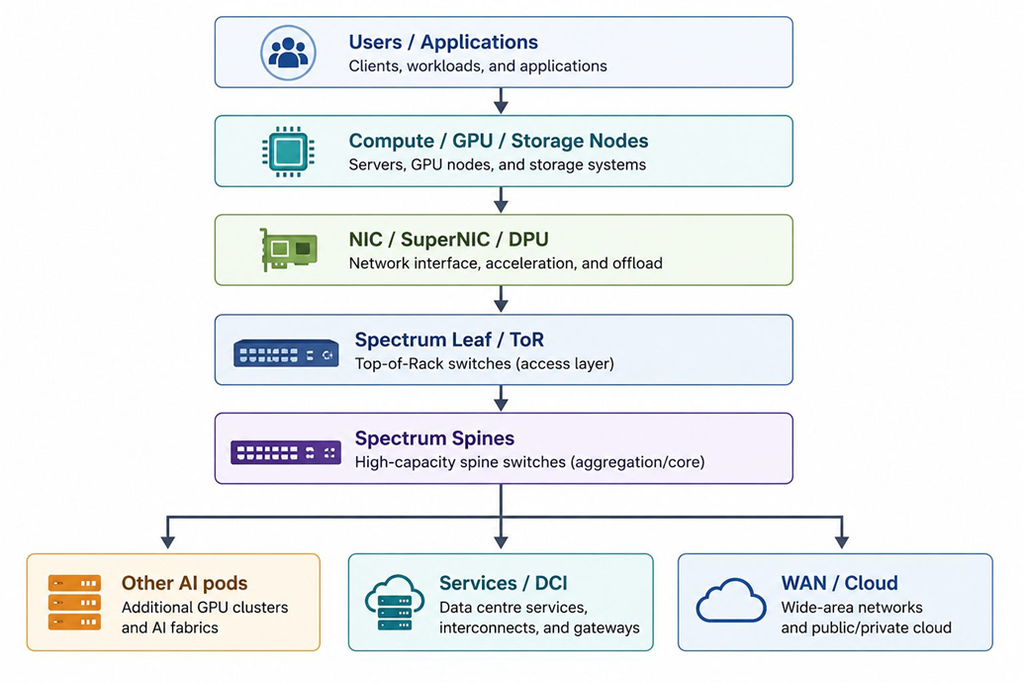

Figure 1 – Spectrum networking in the larger data-centre system
The problem it solves
Modern data centres no longer behave like a set of isolated servers talking mostly to users. Cloud platforms, distributed storage, Kubernetes, HPC, and especially AI create large volumes of east-west traffic between machines. A network must therefore behave as a scalable fabric: many equal-cost paths, fast failure recovery, predictable forwarding, automation, and deep telemetry.
AI increases the stakes. A distributed training job can involve hundreds or thousands of GPUs exchanging synchronized data. One congested path can stall many accelerators at once. The network becomes part of the compute system, not just plumbing underneath it.
How this differs from campus switching
| Dimension | Typical enterprise/campus | Large Spectrum data-centre fabric |
| Primary traffic | User-to-application, north-south | Machine-to-machine, heavily east-west |
| Topology | Access/distribution/core, often hierarchical | Clos/leaf-spine with many equal-cost paths |
| Failure strategy | Redundancy around key devices | Many parallel paths; tolerate component loss |
| Bandwidth pattern | Bursty but usually modest per endpoint | Very high aggregate bandwidth; synchronized AI/storage bursts |
| Operations | Device-by-device CLI still common | Automation, telemetry, validation, version control |
| Congestion | Usually absorbed by TCP and queues | May directly reduce GPU/job efficiency; RoCE requires deliberate treatment |
Source note: See references [1], [2], [3], [4].
The Mental Model
Think fabric, not switch
A single switch is a box with ports. A fabric is a distributed forwarding system made from many switches and links. Large data-centre design therefore asks different questions: How many equal-cost paths exist? What happens when one path fails? How much bisection bandwidth is available? How is congestion detected? Can the entire system be validated automatically?
Mental shortcut: A leaf-spine network is closer to a freeway grid than to a single highway. You scale by adding parallel capacity and spreading traffic across paths, not by forcing all traffic through one bigger central box.

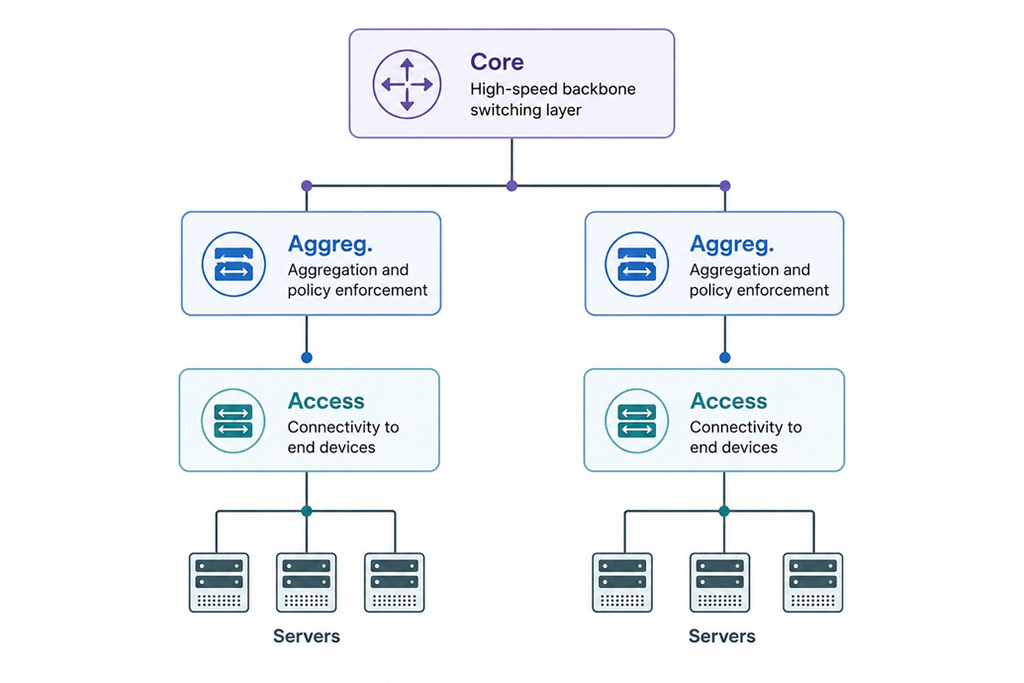

Figure 2 – Traditional three-tier network

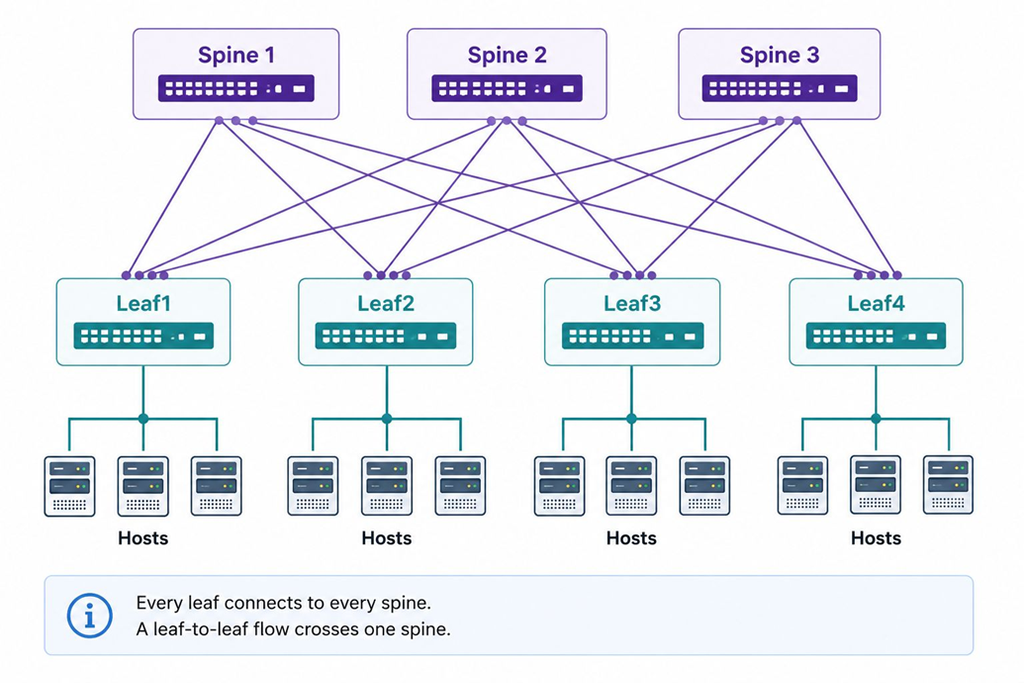

Figure 3 – Leaf-spine Clos fabric
East-west and north-south

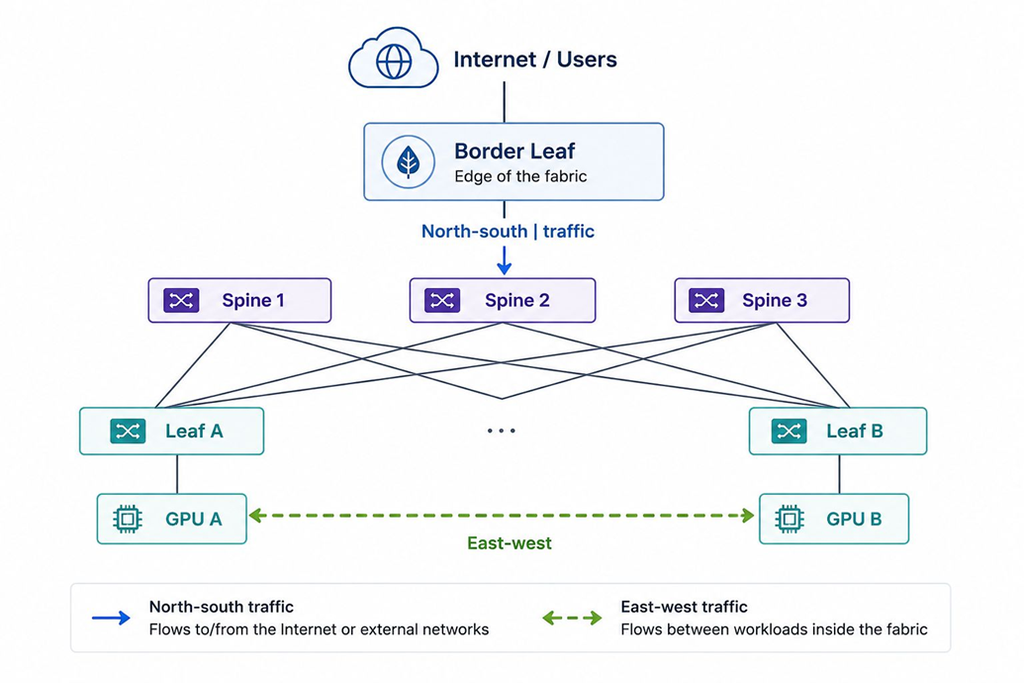

Figure 4. East-west versus north-south traffic
North-south traffic enters or leaves the data centre. East-west traffic stays inside it. AI training, distributed storage, microservices, and database sharding can make east-west traffic dominant. That is one reason the leaf-spine model is so common: it gives predictable hop count and many parallel paths between endpoints.
Underlay, overlay, and planes
- Underlay: the IP fabric that provides basic reachability between network devices and tunnel endpoints. BGP is a common control plane for this layer.
- Overlay: optional logical networking layered on the underlay, commonly EVPN/VXLAN for tenant segmentation and workload mobility.
- Data plane: the hardware forwarding path carrying packets.
- Control plane: protocols and state that decide where packets should go, such as BGP and EVPN.
- Management plane: how operators authenticate, configure, automate, monitor, upgrade, and troubleshoot devices.
Low-loss does not mean “magic lossless Ethernet”
RoCE fabrics can operate with different combinations of ECN, PFC, endpoint congestion control, and platform-specific optimizations. Treat “lossless” as an engineered behaviour for selected traffic classes under defined assumptions, not as a blanket property of the entire Ethernet network. PFC can prevent drops for a priority, but misuse can propagate congestion and create head-of-line blocking or pause storms.
Source note: See references [5], [6].
History and Motivation
Ethernet began as a shared LAN technology and evolved into the dominant general-purpose data-centre network. As link rates increased, large data centres moved away from chassis-heavy three-tier designs toward scale-out fabrics built from fixed-form-factor switches. Merchant silicon, open network operating systems, and protocols such as BGP and EVPN made it practical to operate networks more like distributed systems.
Mellanox and NVIDIA
Mellanox built a strong high-performance networking business spanning InfiniBand, Ethernet adapters, switches, and RDMA. NVIDIA announced its plan to acquire Mellanox in March 2019 and completed the acquisition on 27 April 2020 for approximately US$7 billion. That combination brought high-performance networking into NVIDIA’s end-to-end accelerated-computing platform.
Spectrum milestones
| Period | Milestone | Why it mattered |
| 2010s | Spectrum Ethernet ASIC and SN2000 generation | High-performance open Ethernet switching and programmable telemetry became a core Mellanox capability. |
| Spectrum-2 / SN3000 | Up to 200 GbE class switching | Higher-radix leaf/spine design for cloud-scale fabrics. |
| Spectrum-3 / SN4000 | Up to 400 GbE class switching | Cloud-scale capacity for distributed data-centre applications. |
| 2022 | Spectrum-4 announced at 51.2 Tb/s | End-to-end 400G-class platform with ConnectX-7 and BlueField-3; later foundational to Spectrum-X. |
| 2023-2024 | Spectrum-X platform emerges | Ethernet positioned as a tightly coordinated AI network, not simply switching plus RoCE. |
| 2025 | Spectrum-XGS announced | Extends the Spectrum-X concept across data centres with distance-aware mechanisms. |
| 2026 | Spectrum-6 arrives | 102.4 Tb/s switching generation for Vera Rubin-era gigascale AI factories. |
Why AI renewed networking research
Traditional distributed applications often tolerate variable network service because TCP backs off and application requests complete independently. AI collectives are different: large numbers of workers may enter communication phases together. Synchronized bursts, incast, elephant flows, and collective algorithms expose congestion hot spots quickly. This creates demand for more predictable path utilization, telemetry, endpoint-assisted congestion control, and network designs that scale without adding unnecessary tiers.
Source note: See references [7], [8], [9].
